When selecting the right automotive bearing, several factors need to be considered, with the bearing’s load capacity being the most critical. This directly affects the vehicle’s performance, service life, and safety. Here are key points to consider when selecting the right bearing:

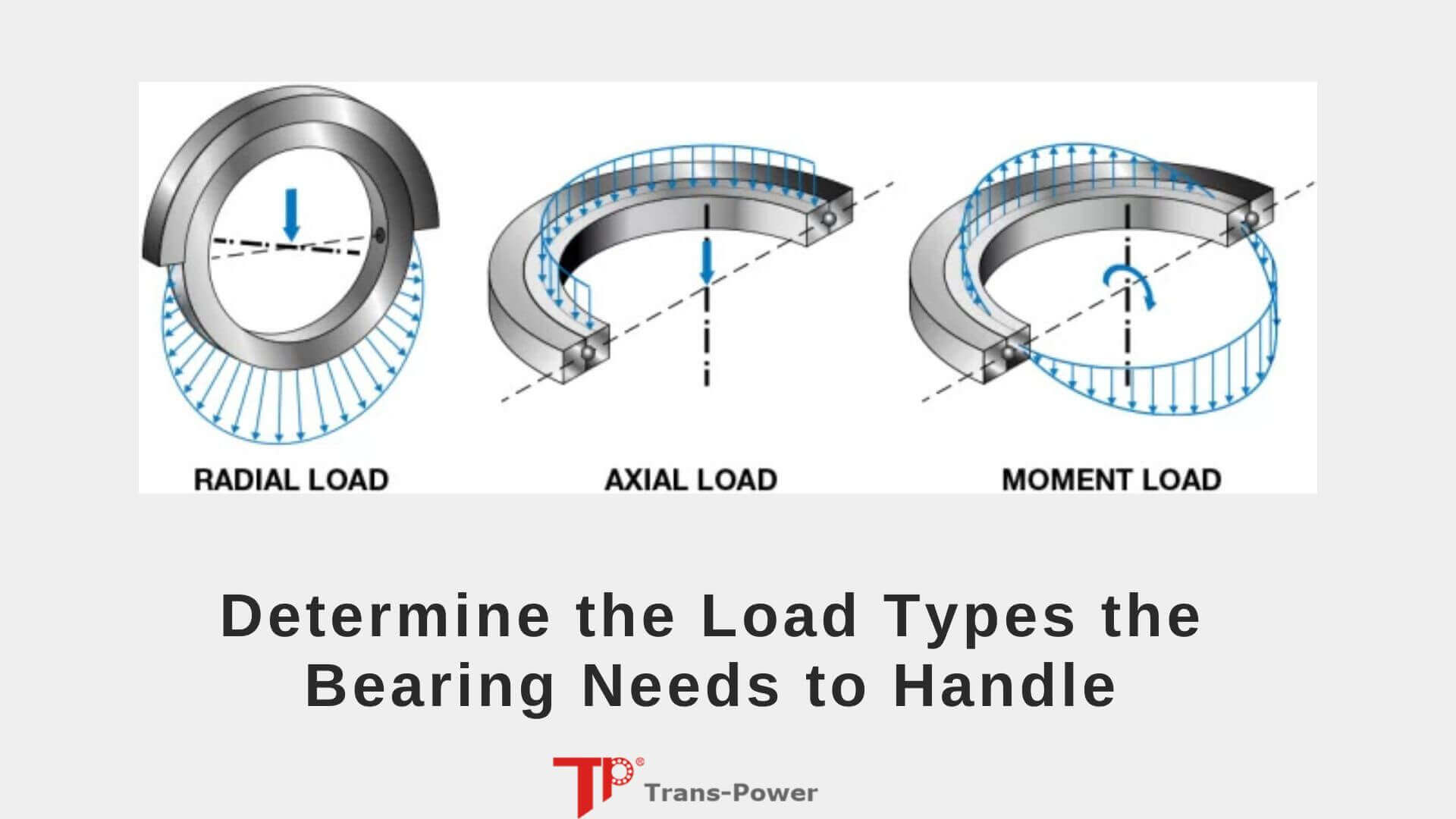

1. Determine the Load Types the Bearing Needs to Handle
Depending on the application, bearings will experience different types of loads. This determines the type and design of the bearing required. The common load types include:
• Radial Load: This type of load is perpendicular to the rotating axis. Radial loads are typically present when loads are applied laterally to the rotating shaft. For example, in motors, the weight of the rotor and any additional radial force from the belt or pulley system will exert a radial load on the motor bearings.
• Axial Load: Axial loads are applied parallel to the rotating axis and are common in applications where force is applied along the direction of the axis. A typical example is in automotive wheel hubs, where thrust is generated during acceleration, braking, or turning, creating an axial load on the wheel bearings.
• Combined Load: In many applications, bearings are subjected to a combination of radial and axial loads. These combined loads require bearings that can handle both types of load. A practical example is in automotive suspension systems, where wheel bearings endure both radial loads from the vehicle’s weight and axial loads from turning and braking forces.
• Moment Load: When force is applied perpendicular to the bearing’s axis at a certain distance from the centerline, a moment load is created, which results in bending moments and additional stress on the bearing. Such loads are commonly seen in steering systems.

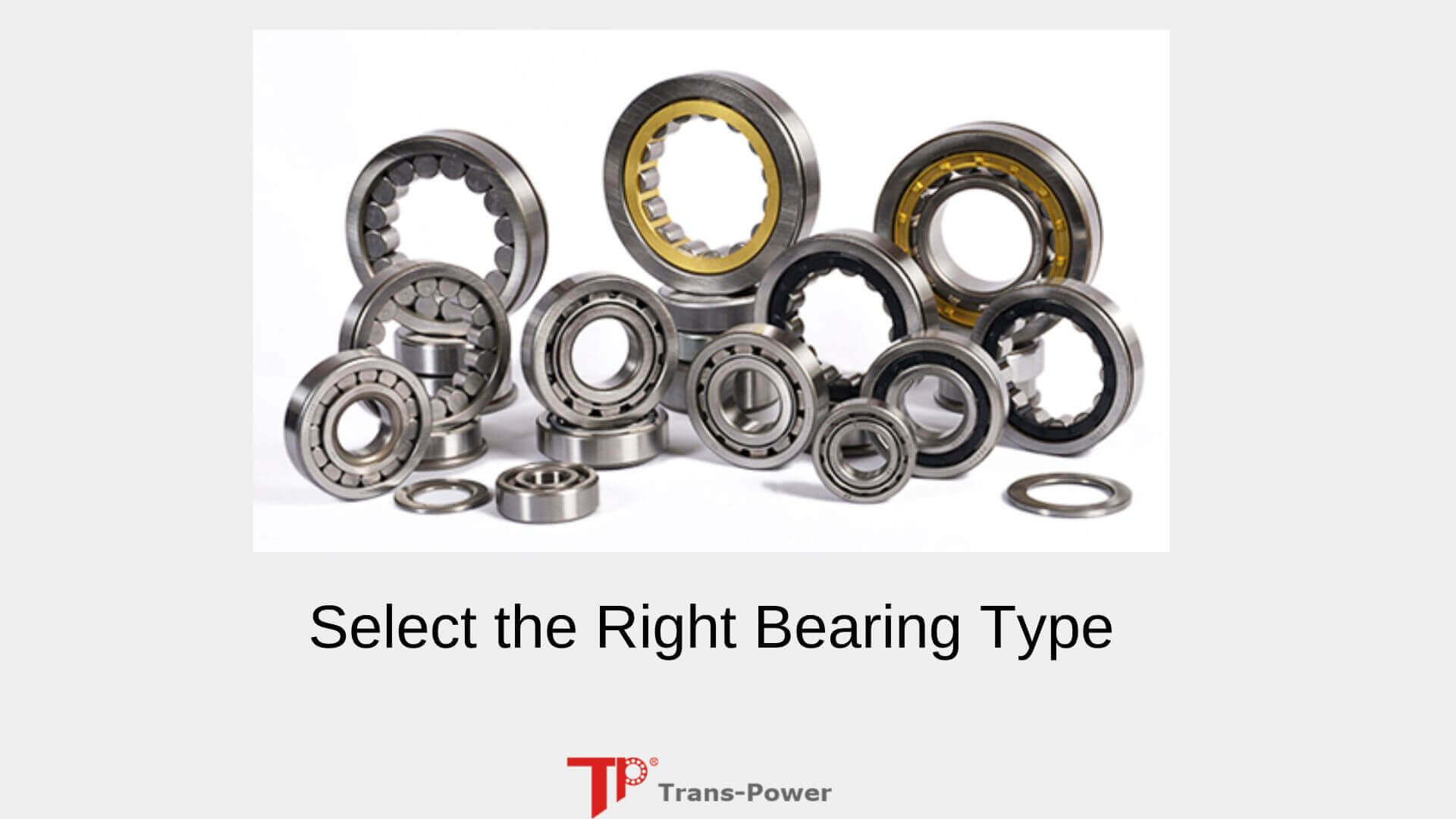

2. Select the Right Bearing Type
Depending on the load types, operating conditions, and application requirements, different types of bearings are chosen. Common bearing types for automotive applications include:
• Deep Groove Ball Bearings: Suitable for handling single radial or axial loads, or combined loads. These bearings are widely used in automotive wheel hubs and drive shafts.
• Cylindrical Roller Bearings: Designed for handling larger radial loads while also accommodating some axial loads. These are commonly used in applications that bear heavy loads.
• Angular Contact Ball Bearings: Ideal for handling both radial and axial loads simultaneously. These are typically used in automotive suspension systems and wheel hubs.
• Needle Bearings: Primarily used for high radial load applications in constrained spaces.
3. Bearing Load Capacity
Every bearing has a rated load capacity, which refers to the maximum load it can handle over a specified period while maintaining stable operation. The load capacity of the bearing depends on its material, design, and size. Excessive load can cause premature wear, failure, and negatively impact system stability and safety.
4. Consider Operating Conditions and Environment
Besides load capacity, the bearing’s operating environment plays a crucial role in the selection process. For example:
• Temperature: If the automotive bearing operates in high or low-temperature environments, materials and lubrication methods that can withstand extreme temperatures need to be selected.
• Humidity and Corrosion: In humid or corrosive environments, bearings with protective coatings or seals should be chosen to extend their service life.
• Speed: Bearings operating at high speeds need to have low friction and high load capacity, meaning precision bearings may be required.

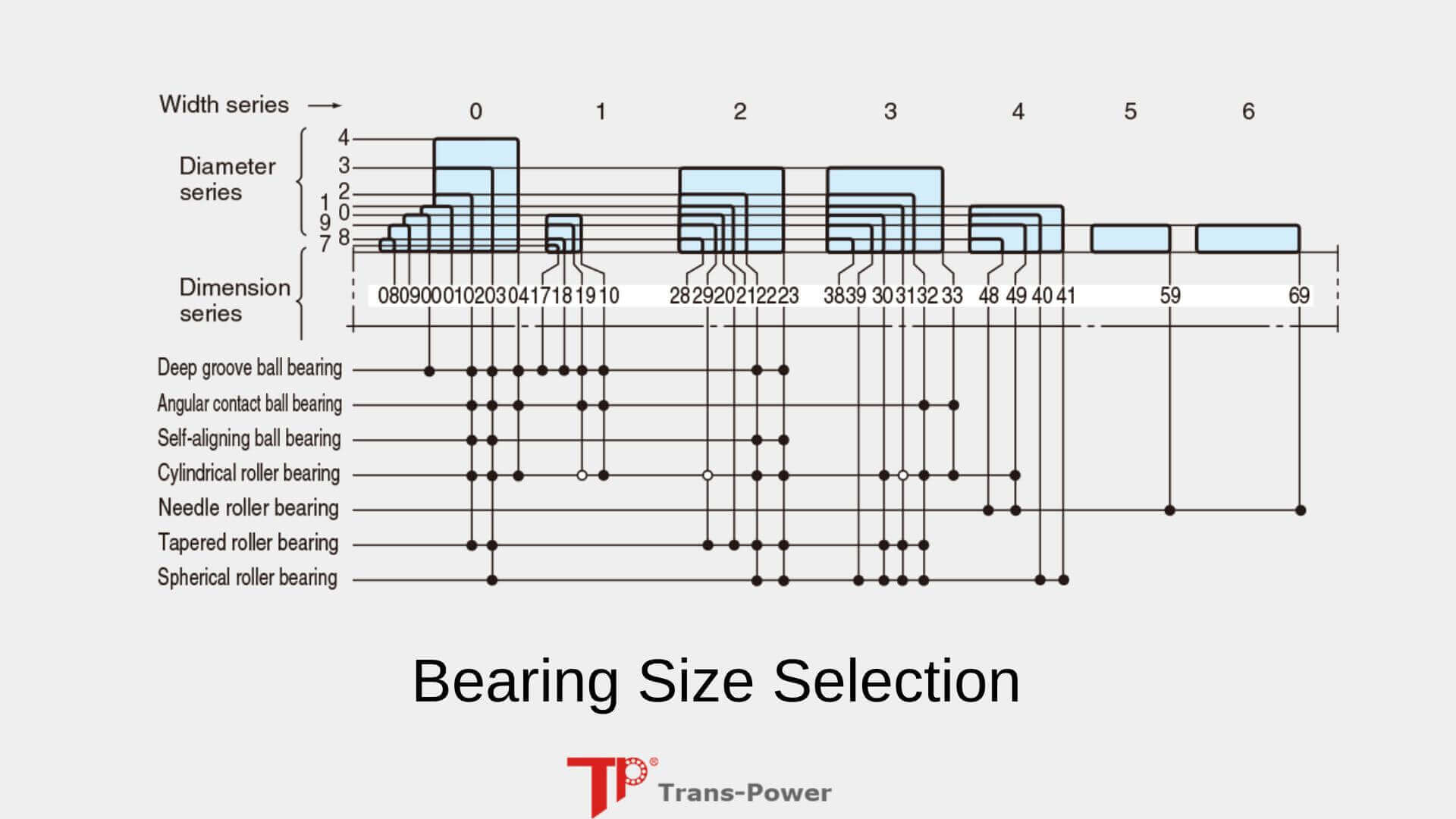

5. Bearing Size Selection
Bearing size should be chosen based on the specific design requirements of the vehicle. The size must ensure sufficient load capacity while considering space constraints. Too large a bearing may not fit into a compact automotive structure, while too small a bearing may not support the required loads.

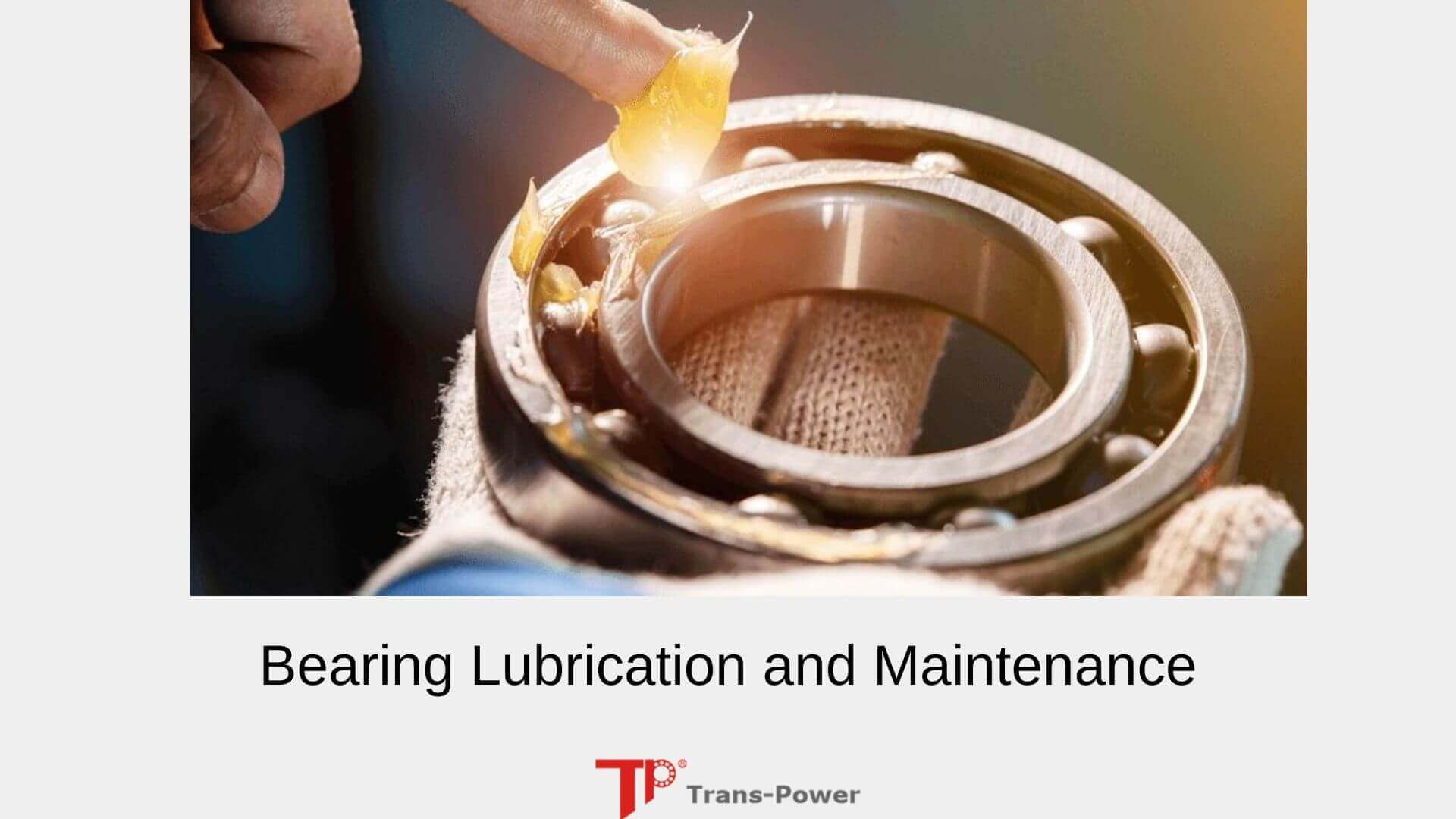

6. Bearing Lubrication and Maintenance
Proper lubrication is essential for bearing performance. Effective lubrication can significantly extend the bearing’s service life. When selecting bearings, it’s important to consider the lubrication method (oil or grease) and the frequency of lubrication, especially in high-speed or high-temperature environments.
7. Load Capacity and Safety Factor
When selecting bearings, a safety factor is often considered to ensure that the bearing can handle possible overloads or sudden load spikes. The chosen bearing should have enough load capacity to prevent failure in challenging conditions.
Conclusion
Selecting the right automotive bearing involves more than just considering its load capacity; it requires a comprehensive evaluation of load types, operating conditions, size, lubrication, and maintenance. By understanding and accurately assessing these factors, you can choose the most suitable bearing that ensures the efficient, reliable, and safe operation of the automotive system.
